Brand Name : SOUTH
Model Number : NTS-362R10U
Place of Origin : China
MOQ : 1 piece
Price : $1006.19
Payment Terms : L/C,T/T
Supply Ability : 1 ~ 10 day
Delivery Time : 10 work day
Products Description
The telescope | ||
Magnification | 30X | |
Viewing Angle | 1°30' | |
Stadia | ≥1.2M | |
Ranging system | ||
Ranging accuracy (prism) | 2+2PPM | |
Ranging accuracy (no prism) | 3+2PPM | |
| Prism mode (good atmospheric conditions) | 5000M |
Reflector plate(Kodak White card with 90% reflectance) | 1000M | |
Prism free mode | 1000M | |
Measuring time | Precision of 0.3 seconds, 0.1 seconds tracking | |
The Angle measuring system | ||
Angle measuring principle | Absolute coding | |
Reading | 0.1 "/ 1" / 5 "/ 10"Optional | |
Angle measuring accuracy | 2" | |
The screen | ||
Screen type | High light display | |
The screen size | 2.6 in | |
Digital display | The biggest: minimum 999999999.999:1 mm | |
The data transfer | ||
USB port | √ | |
Bluetooth | √ | |
Onboard battery | ||
The power supply | Rechargeable lithium battery 3100 mAh | |
Voltage | 7.4 V dc | |
Continuous working time | Eight hours | |
The size and weight | ||
Size | 200MMx190MM×330MM | |
Weight (KG) | 5.5KKG |
Certifications
![]() |

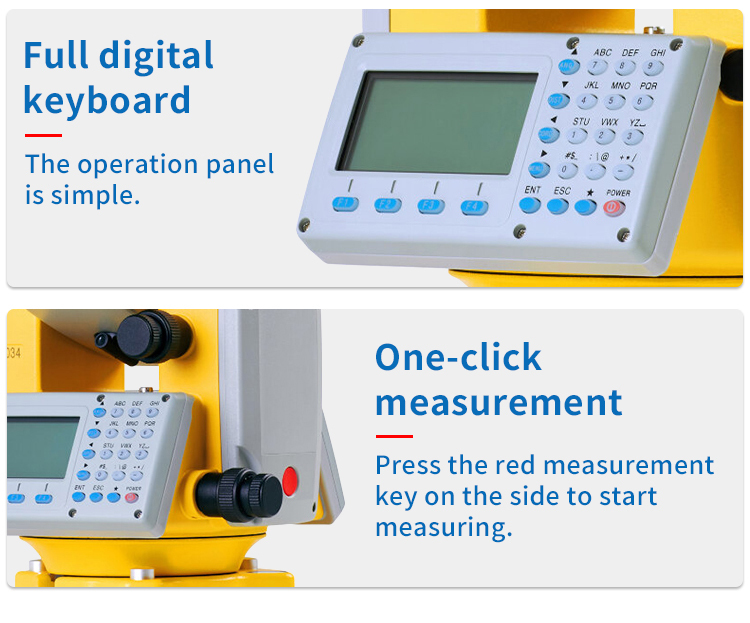

SOUTH N6+ Series NTS-362R10U Total Station 2" Accuracy 1000m Reflectorless Images |
