Adjustable CHC I89 GNSS RTK Receiver L5 GPS Survey Equipment

Name: Adjustable CHC I89 GNSS RTK Receiver L5 GPS Survey Equipment
Brand: CHCNAV
Price: 1 USD

China Adjustable CHC I89 GNSS RTK Receiver L5 GPS Survey Equipment wholesale

Brand Name : CHCNAV

Model Number : i89 rover

Place of Origin : China

MOQ : 1 piece

Price : $1,800.00

Payment Terms : L/C, T/T

Supply Ability : 1 ~ 30 day

Delivery Time : 30 work day

Product name : RTK receiver

Frequency : 1408 channels

GPS : L1C/A,L1C,L2C,L2P,L5

Galileo : E1, E5A, E5B, E5AltBOC, E6

QZSS : L1C/A, L1C, L2C, L2E, L5

BDS : B1, B2, B3

Working range : 5km typical, 8~10km optimal

Application : full-wave

Transmitting power : 0.5W, 1W, 2W adjustable

Contact Now

CHC i89 Hot Selling Gps Surveying Equipment Survey Equipments Gnss Receiver RTK

Product Paramenters

TECHNICAL PARAMETER
project	content	index
Satellite tracking	Satellite system	GPS+BDS+Glonass+Galileo+QZSS
	Satellite system	Support Beidou three generations, support Five star 21 frequency point
	Satellite tracking	BDS: B1I,B2I,B3I,B1C,B2a,B2b*
		GPS: L1C/A,L1C,L2C,L2P,L5
		GLONASS: G1,G2,G3
		Galileo: E1,E5a,E5b,E6*
		QZSS: L1C/A,L1C,L2C,L5
		IRNSS: L5*
		SBAS: L1C/A*
	Channel	1408
	Initialization reliability	99.99%
	No network continued test	support
	Signal acquisition sensitivity	Typical value -162 dbm, the ability to capture weak signals is stronger
Accuracy	Static accuracy	Planar accuracy:±(2.5mm + 0.5×10-6×D)mm
	Static accuracy	Elevation accuracy:±(5mm + 0.5×10-6×D)mm
	RTK accuracy	Planar accuracy:±( 8mm + 1×10-6×D)mm
	RTK accuracy	Elevation accuracy:±(15mm + 1×10-6×D)mm
	Tilt compensation accuracy	8mm + 0.3mm /° tilt (accuracy <2.5cm within 30°)
	Video measurement accuracy	Typical 2~4cm, measuring distance 2~ 15m
GNSS+ Inertial navigation	IMU update rate	200Hz
	Tilt Angle	0-60°
	Insensitive super inertial navigation	No initialization is required, the INS will not exit after initialization
User interaction	Pilot lamp	1 satellite light +1 differential data light +1 static indicator light +1 power light
	key	Static switch button + Power/Confirm button
	web page	Support PC/ mobile web page
camera	Characteristic function	Video measurement, efficiency increase by 60%*
		3D modeling, double the efficiency of internal and external work *
		AR real navigation, put a point not lost
		Visual lofting, one stick in place
	pixel	2MP&5MP
	Frame rate	25Hz
	Field of view (H, V)	75°,75°
	illuminance	Starlight camera, OmniPixel 3-GS technology
	illuminance	Full color picture at 0.01lux
Physical characteristics	dimension	Φ133.5mm*80mm
	weight	725g (battery included)
	material	Magnesium alloy
	Operating temperature	-45℃~+75℃
	Storage temperature	-55℃~+85℃
	Waterproof and dustproof	IP68 (30 minutes underwater 1 meter immersion)
	anticollision	IK08 (subjected to the same mechanical impact as the 2.5kg steel ram without damage, resistance to 3m drops)
	anti-condensation	100%

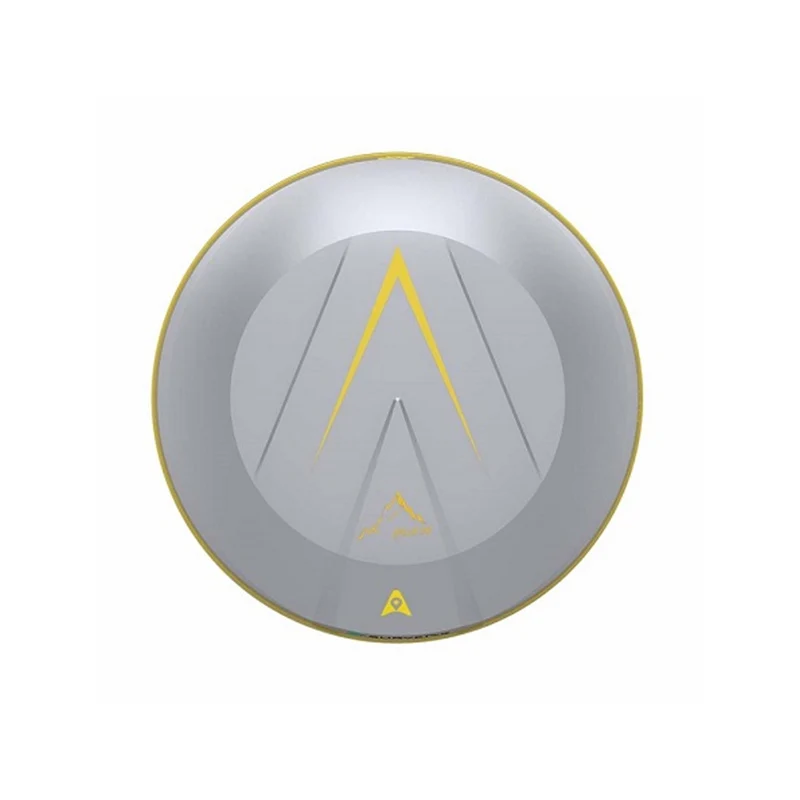

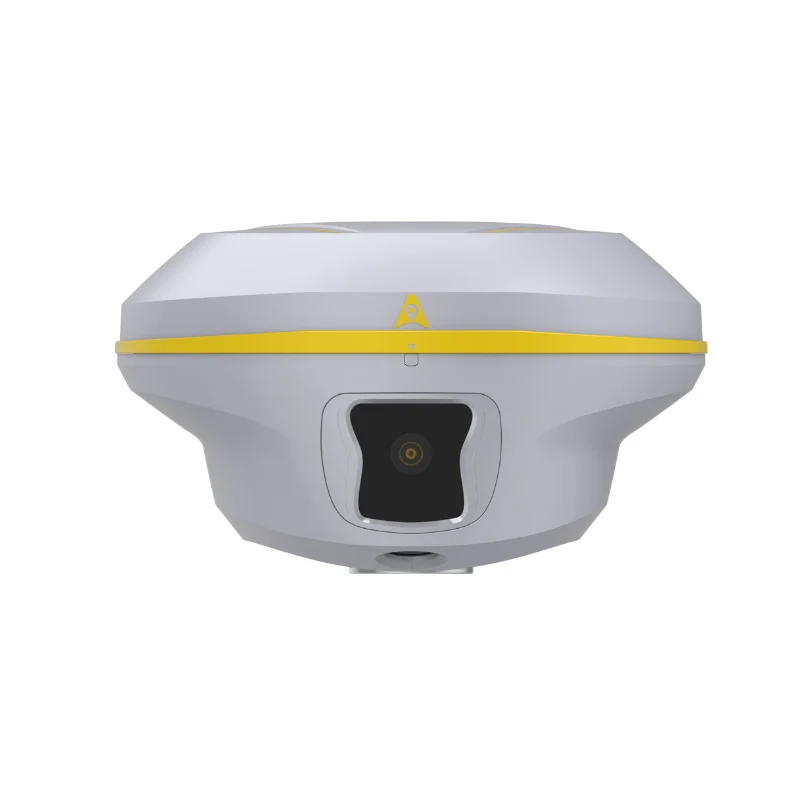

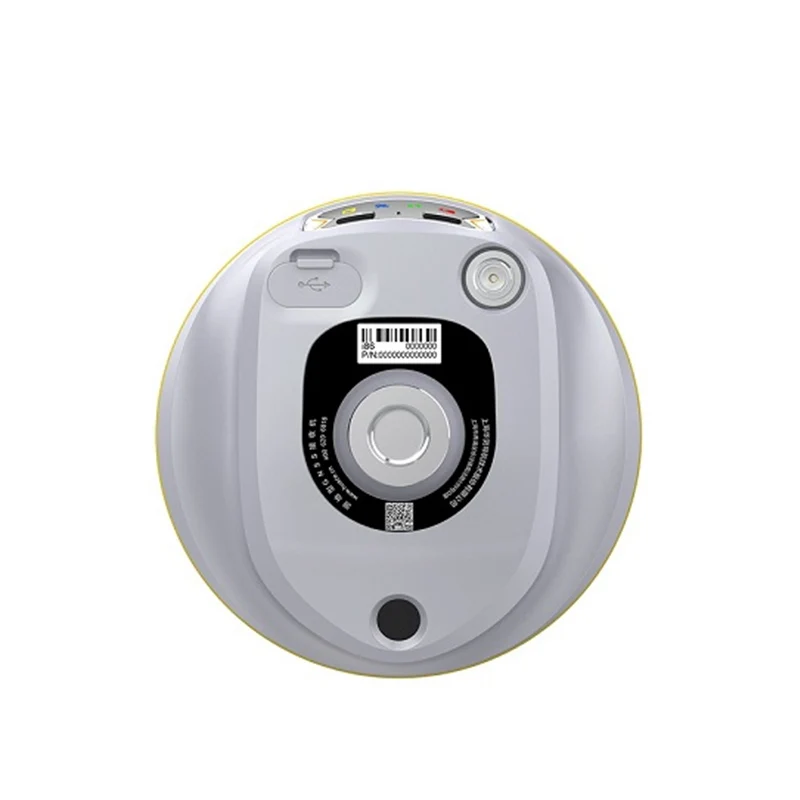

Product Display

Adjustable CHC I89 GNSS RTK Receiver L5 GPS Survey Equipment

Adjustable CHC I89 GNSS RTK Receiver L5 GPS Survey Equipment

certificate

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
